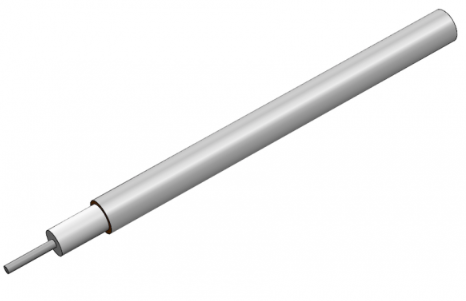

DIMENSIONS	UNITS	M17/133-00001 REV F1
Outer Conductor Diameter	In	.0865
Outer Conductor Diameter	mm	2.2
Center Conductor Diameter	In	0.0201
Center Conductor Diameter	mm	0.51
Dielectric Diameter	In	0.066
Dielectric Diameter	mm	1.68
MATERIALS
Outer Conductor		Copper
Outer Conductor Plating		Tin
Dielectric		PTFE
Center Conductor		SPCW
RoHS Compliant		YES
MECHANICAL CHARACTERISTICS
Temp Range °C	°C	-40 to +125
Inside Bend Radius (Minimum)	In	.125
Inside Bend Radius (Minimum)	mm	3.18
Weight	lbs / 100ft	1.57
Weight	kg / 100m	2.34
ELECTRICAL CHARACTERISTICS**
Nominal Impedance	Ohms	50.0 +/- 1.5
Velocity of Propagation	-	69.5%
Shielding Effectiveness	db	>165
Voltage Withstanding	VRMS @ 60 Hz	5000
Continuous Working Voltage	VRMS MAX	1500
Maximum Operating Frequency	GHz	20
Attenuation (db / 100 Ft Typical)	0.5 GHz	15
	1.0 GHz	22
	5.0 GHz	50
	10.0 GHz	80
	18.0 GHz	110
	26.5 GHz	N/A
	40.0 GHz	N/A
	50.0 GHz	N/A
	65.0 GHz	N/A
	90.0 GHz	N/A
Power (Watts Cw @ 20 °C, Maximum)	0.5 GHz	180
	1.0 GHz	130
	5.0 GHz	54
	10.0 GHz	35
	18.0 GHz	24
	26.5 GHz	N/A
	40.0 GHz	N/A
	50.0 GHz	N/A
	65.0 GHz	N/A
	90.0 GHz	N/A
