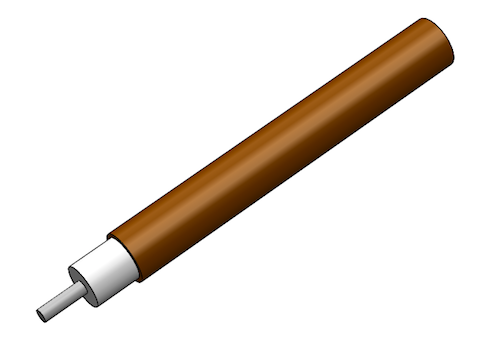

DIMENSIONS	UNITS	M17/130-RG402 REV F2
Outer Conductor Diameter	In	0.141
Outer Conductor Diameter	mm	3.58
Center Conductor Diameter	In	0.0362
Center Conductor Diameter	mm	0.92
Dielectric Diameter	In	0.1175
Dielectric Diameter	mm	2.98
MATERIALS
Outer Conductor		Copper
Outer Conductor Plating		None
Dielectric		PTFE
Center Conductor		SPCW
RoHS Compliant		YES
MECHANICAL CHARACTERISTICS
Temp Range °C	°C	-40 to +125
Inside Bend Radius (Minimum)	In	0.25
Inside Bend Radius (Minimum)	mm	6.35
Weight	lbs / 100ft	3.44
Weight	kg / 100m	5.12
ELECTRICAL CHARACTERISTICS**
Nominal Impedance	Ohms	50.0 +/- 1.0
Velocity of Propagation	-	69.5%
Shielding Effectiveness	db	>165
Voltage Withstanding	VRMS @ 60 Hz	5000
Continuous Working Voltage	VRMS MAX	1900
Maximum Operating Frequency	GHz	20
Attenuation (db / 100 Ft Typical)	0.5 GHz	8
	1.0 GHz	12
	5.0 GHz	29
	10.0 GHz	45
	18.0 GHz	65.5
	26.5 GHz	N/A
	40.0 GHz	N/A
	50.0 GHz	N/A
	65.0 GHz	N/A
	90.0 GHz	N/A
	0.5 GHz	600
	1.0 GHz	450
Power (Watts Cw @ 20 °C, Maximum)	5.0 GHz	180
	10.0 GHz	120
	18.0 GHz	83
	26.5 GHz	N/A
	40.0 GHz	N/A
	50.0 GHz	N/A
	65.0 GHz	N/A
	90.0 GHz	N/A
