HOLT IC航空電子設備MIL-STD-1553 協議IP內核
發布時間:2021-04-14 17:12:48 瀏覽:1696
Holt MIL-STD-1553/1760 IP解決方案是全世界第一個MIL-STD-1553DALADO-254可認證IP核。它根據HoltHI-6130/31和MAMBATM系列。它在主處理器和MIL-STD-1553B數據總線之間提供了一個完善的單功能或多功能協議接口。提供具備高性能數據同步主機接口的BC、RT或MT功能模塊的各種組合。主機接口能夠 方便地連接到AMBAAXI4接口協議或PCIExpress,啟動的終端能夠 通過共享的雙數據總線收發器HI-1587和外部變壓器(也可從Holt獲得)與MIL-STD-1553數據總線通信。HI-1587具備1.8V、2.5V和3.3V兼容的數字I/O功能模塊,包括集成的IP安全模塊,這是IP實現所必需的,故此不需要其它IP解決方案中常用的傳統外部IP軟件芯片。
所有的RT設備均符合MIL-STD-1760標準,并能在通電后150ms內響應狀態字忙位的有效信息。
HoltIP Core產品包括HI-6300IPCore,Verilog測試平臺和支持文檔,使設計者能夠在各種FPGA實現中實例化該核。
深圳市立維創展科技有限公司,持續提供HOLT IC預定渠道,部分型號備有現貨庫存,歡迎咨詢。
詳情了解霍爾IC請點擊:http : //www.qhdmoon.com/public/brand/55.html
或聯系我們的銷售工程師: 0755-83050846 QQ: 3312069749
Device | Device Type | Description |
HI-6300-xxxB | RT/MT | MIL-STD-1553 / MIL-STD-1760 Remote Terminal / Monitor Terminal IP core. Fully software compatible with HI-6130 and MAMBA hardware families. |
HI-6300-xxxC | BC/RT | MIL-STD-1553 / MIL-STD-1760 Bus Controller / Remote Terminal IP core. Fully software compatible with HI-6130 and MAMBA hardware families. |
HI-6300-xxxD | BC/RT/MT | MIL-STD-1553 / MIL-STD-1760 Bus Controller / Remote Terminal / Monitor Terminal IP core. Fully software compatible with HI-6130 and MAMBA hardware families. |
HI-6300-xxxF | RT/MT | MIL-STD-1553 / MIL-STD-1760 Remote Terminal / Monitor Terminal IP core. Fully software compatible with HI-6130 and MAMBA hardware families. DO-254 Design Assurance Level A Compliant. |
HI-6300-xxxG | BC/RT | MIL-STD-1553 / MIL-STD-1760 Bus Controller / Remote Terminal IP core. Fully software compatible with HI-6130 and MAMBA hardware families. DO-254 Design Assurance Level A Compliant. |
HI-6300-xxxH | BC/RT/MT | MIL-STD-1553 / MIL-STD-1760 Bus Controller / Remote Terminal / Monitor Terminal IP core. Fully software compatible with HI-6130 and MAMBA hardware families. DO-254 Design Assurance Level A Compliant. |
推薦資訊

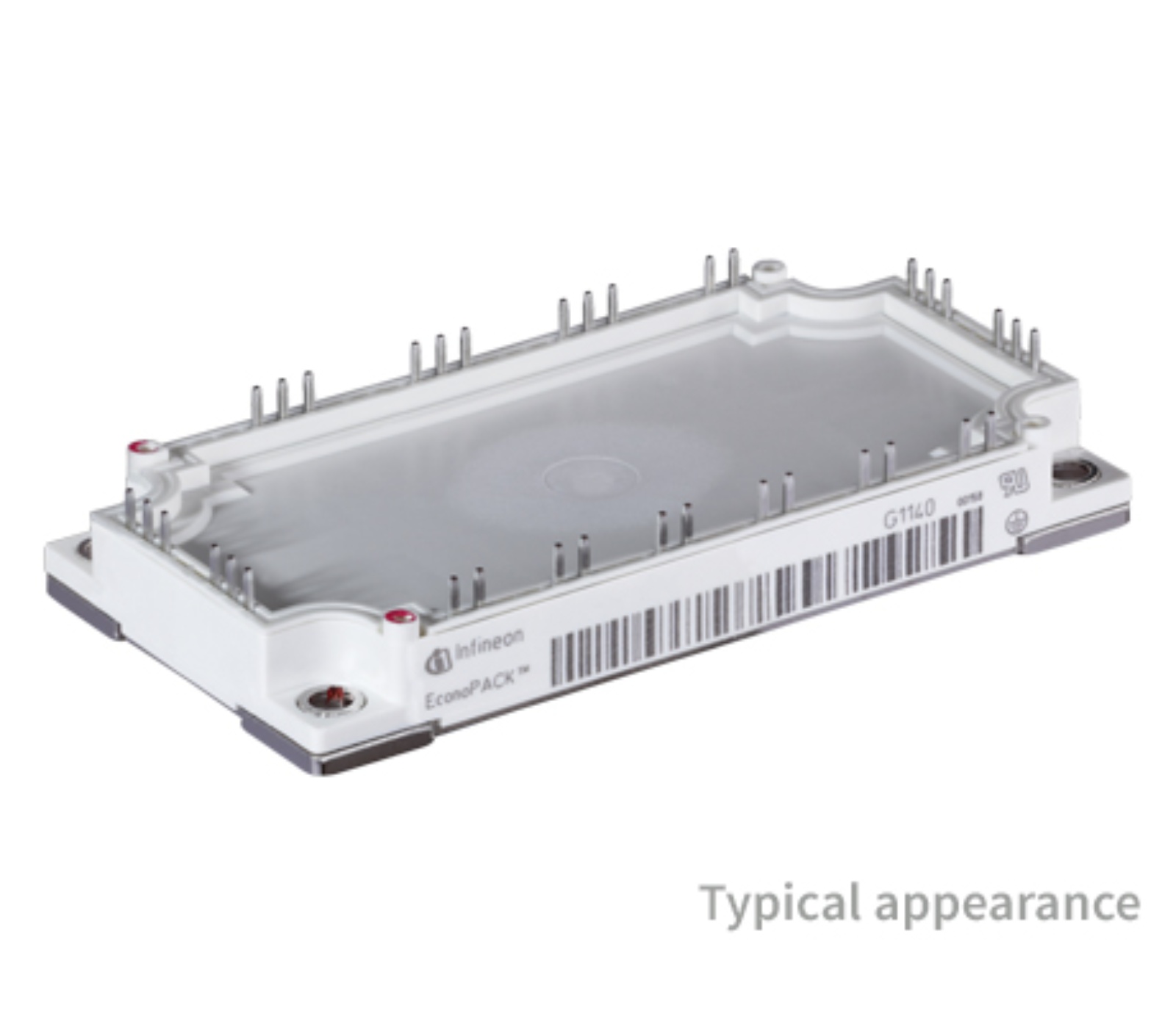

英飛凌?EconoPACK?3 1200 V, 75 A 六單元 IGBT 模塊是一款采用第三代IGBT和NTC溫度檢測技術的先進產品,也適用于快速開關器件,型號為FS75R12KT3G。
